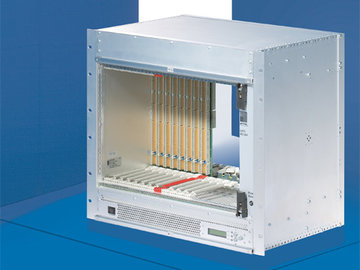

HeiPac 9U (6+2x1 1/2), 8 Slot, with radial fan HeiCool (CPCI)
Order No.: 9909483
height (he): 9 U (6+2x1 1/2)
side panel depth: 290,5 mm
for pcb depth: 160 mm
version: CPCI
number of slots: 8 Slot
Order No.: 9909483
EAN-Nr.: 4250558943243
Commodity Code: 84714900
Packs of: 1 piece
Delivery Scope: Systemplatform, assemblied, wired and tested
Weight: 9.400 kg
Any indication of a tariff / statistical number is based on our tariff assessment and is not legally binding. Compliance with applicable export regulations and laws is the sole responsibility of the exporter of the goods.
Technical specifications:
Subrack, 290.5 mm deep, for installation in 482.6 mm (19˝) enclosures or cases.Prepared to accommodate CPCI boards and drives. Includes MPS monitoring. Complies with IEC 60 297-3-101, -102, -103. Fully assembled, pre-wired and tested.
