HeiPac 7U (6+2x1/2), 12 Slot (VME)
Order No.: 9910958
height (he): 7 U (6+2x1/2)
side panel depth: 405 mm
for pcb depth: 160 mm
version: VME
number of slots: 12 Slot
Order No.: 9910958
EAN-Nr.: 4250558943472
Commodity Code: 84714900
Packs of: 1 piece
Delivery Scope: Systemplatform, assemblied, wired and tested
Weight: 9.833 kg
Any indication of a tariff / statistical number is based on our tariff assessment and is not legally binding. Compliance with applicable export regulations and laws is the sole responsibility of the exporter of the goods.
Technical specifications:

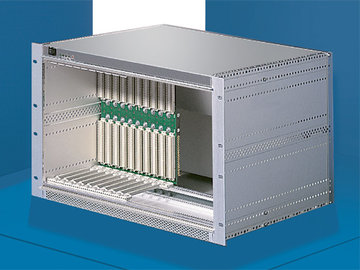

Subrack, 405 mm deep, for installation in 482.6 mm (19˝) enclosures or cases. Prepared to accommodate VMEbus boards and drives. Includes MPS Monitoring
Complies with IEC 60 297-3-101, -102, -103. Fully assembled, pre-wired and tested.
Subrack, 405 mm deep, for installation in 482.6 mm (19˝) enclosures or cases. Prepared to accommodate VMEbus boards and drives. Includes MPS Monitoring
Complies with IEC 60 297-3-101, -102, -103. Fully assembled, pre-wired and tested.
