Support stand HeiCase , grey, 1/2 19''

Order No.: 3751204

EAN-Nr.: 4250558950906

Commodity Code: 39269097

Packs of: 1 set

Delivery Scope: Support stands/carrying handles; supply includes assembly parts

Weight: 0.5 kg

Any indication of a tariff / statistical number is based on our tariff assessment and is not legally binding. Compliance with applicable export regulations and laws is the sole responsibility of the exporter of the goods.

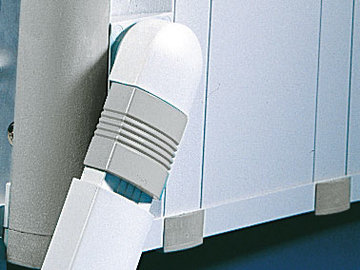

Support stand for easy and safe transportation or for setting up enclosures.

• Support stand/carrying handle adjustable in 30° increments
• Suitable for retro-fitting to 2 – 7 U
• For 1/2 19" and 19" enclosures
• Load capacity 30 kg

Material:

• Hinged part: Die-cast, spray finished in grey (RAL 7035)
• Center part: Extruded aluminium section, spray finished in grey (RAL 7035) with plastic coating

Color:

• RAL 7030 (grey)
• RAL 5018 (green)
• RAL 5012 (blue)

Supply includes:
Assembly parts

Catalogue

CAD-File (Only accessible for registered users. Login or register)
