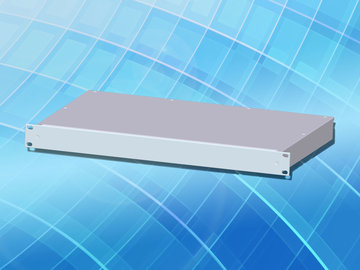

HeiBox ECO
Filter products
| Order No. | height (he) | width (te) | cover depth | case version | EMV Upgradeable |
|---|---|---|---|---|---|
| 9919795 | 1U | 84 HP | 150 mm | rack mounted | yes |
| 9919796 | 1U | 84 HP | 200 mm | rack mounted | yes |
| 9919797 | 1U | 84 HP | 250 mm | rack mounted | yes |
| 9919798 | 1U | 84 HP | 300 mm | rack mounted | yes |
| 9919799 | 1U | 84 HP | 350 mm | rack mounted | yes |
| 9922394 | 2 U | 84 HP | 150 mm | rack mounted | yes |
| 9922395 | 2 U | 84 HP | 200 mm | rack mounted | yes |
| 9922235 | 2 U | 84 HP | 400 mm | rack mounted | yes |
| 9922396 | 2 U | 84 HP | 300 mm | rack mounted | yes |
| 9922397 | 2 U | 84 HP | 350 mm | rack mounted | yes |
| 9921809 | 2 U | 84 HP | 400 mm | rack mounted | yes |
| 9920864 | 2 U | 84 HP | 450 mm | rack mounted | yes |
Applications
The HeiBox ECO is for use as a rack-mount enclosure.
Accommodates Eurocards/Double Eurocards (horizontal), switches, patch panels, routers or modems.
Technical specifications
- 19˝ system enclosure, complies with IEC 60297-3
- For use as a rack-mount enclosure
- Height: 1 U and 2 U
- Installation width: 84 HP
- Enclosure made of sheet steel, front panel and rear panel made of extruded aluminium section
- Optionally available as an instrument case or rack-mount enclosure
- Optional: highly effective EMC protection
