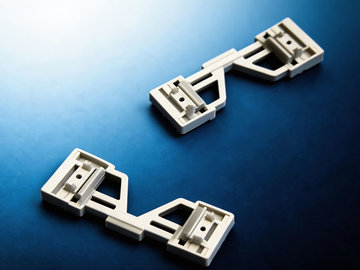

Keyable guide rails, plastic, grey, 60 mm
Order No.: 9920923
width (te): 4 HP
Color: grey
Order No.: 9920923
EAN-Nr.: 4250558961643
Commodity Code: 39269097
Packs of: 1 piece
Delivery Scope: Guide rail
Weight: 0.004 kg
Any indication of a tariff / statistical number is based on our tariff assessment and is not legally binding. Compliance with applicable export regulations and laws is the sole responsibility of the exporter of the goods.
Guide rails 4 HP, keyable, to IEEE 1101.10.
- For 1.6 – 2.4 mm nominal thickness
- Short special version for 60 mm board depth
- Chambers for the installation of keys
- Option of installing ESD contacts to discharge static charges
Version:
For 60 mm PCB depth
Material:
Polycarbonate, base material to UL 94-V0
Color:
Grey RAL 7035
Accessories:
- Keys
- ESD contact
- Extractor handles type IV, IVs, VII
Note:
Only for use in combination with type IV, IVs, VII injector/extractor handles.
